Hitachi Zaxis 225USRLC-5B Crawler Excavator set of Parts Catalogs

Illustrated factory set of Parts Catalogs for Hitachi Crawler Excavators Models Zaxis 225USRLC-5B.

This manuals will assist you in finding spare parts for your crawler excavator.
You can use a Windows, Mac, or Android device to view this manuals. You only need to have a PDF reader installed.

Covered Models:
   Zaxis 225USRLC-5B

The manual comprises two Parts Catalogs

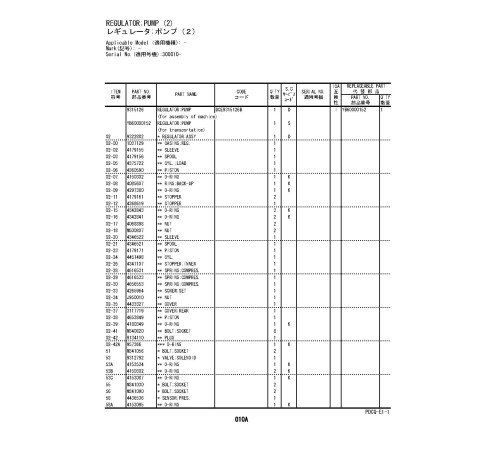

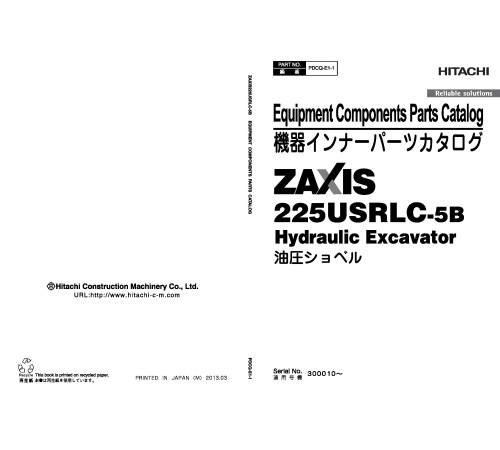

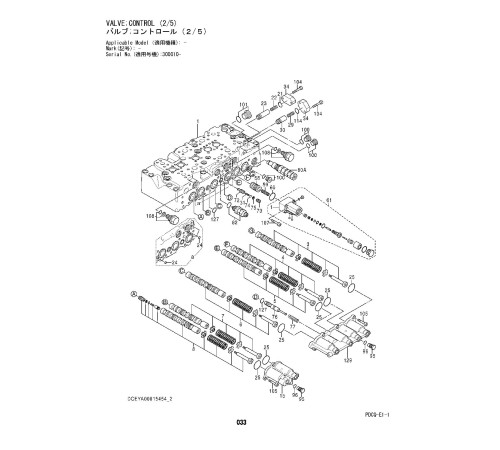

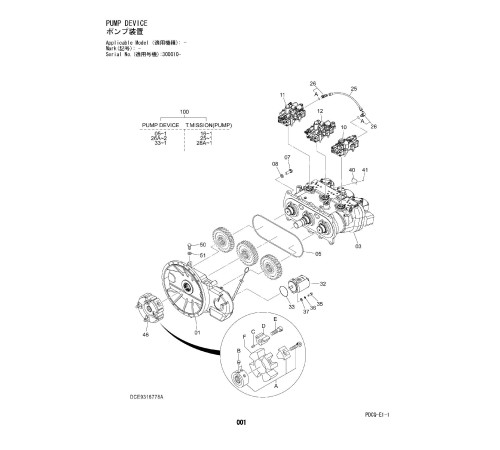

1. Parts Catalog: Equipment Components (PDCQ-E1-1)
Format: PDF, 185 pages
Language: English, Japan
Table of Contents:
   MEMORANDUM
   FOREWORD
      PUMP
      MOTOR
      VALVE
      JOINT;CENTER
      CYLINDER
   PARTS INDEX

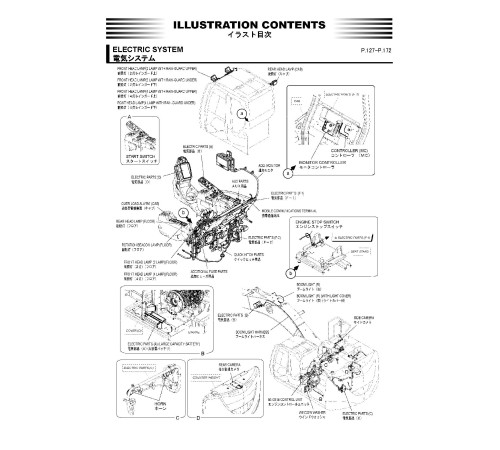

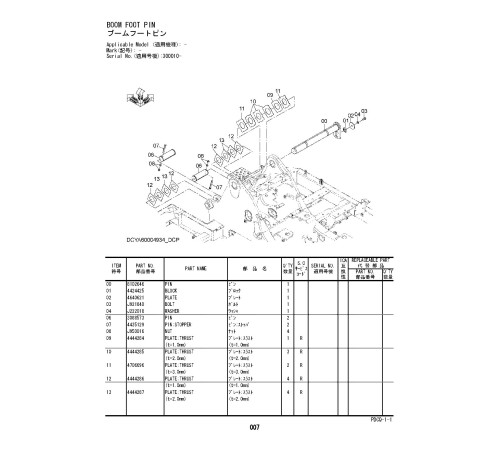

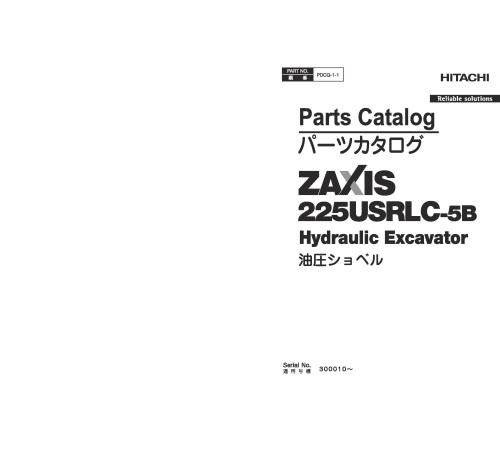

2. Parts Catalog (PDCQ-1-1)
Format: PDF, 565 pages
Language: English, Japan
Table of Contents:
   COVER
   MEMORANDUM
   ILLUSTRATION CONTENTS
   FRAME,COVER
   ENGINE
   HYDRAULIC SYSTEM
   HYDRAULIC PIPING
   HYDRAULIC PIPING (MAIN)
   HYDRAULIC PIPING (PILOT)
   ELECTRIC SYSTEM
   CAB
   FLOOR PARTS
   AIR CONDITIONER, HEATER
   UNDERCARRIAGE
   FRONT-END ATTACHMENTS (MONO-BOOM)
   FRONT-END ATTACHMENTS (2P-BOOM)
   BREAKER, CRUSHER PARTS
   ASSIST PIPING
   ETC.
   TOOLS
   NAME-PLATE
   PARTS INDEX
