Hitachi Zaxis 230, Zaxis 230LC, Zaxis 240H, Zaxis 240LCH, Zaxis 240K, Zaxis 240LCK, Zaxis 250, Zaxis 250LC and Zaxis 250LCN Crawler Excavator set of Parts Catalogs

Illustrated factory set of Parts Catalogs for Hitachi Crawler Excavators Models Zaxis 230, Zaxis 230LC, Zaxis 240H, Zaxis 240LCH, Zaxis 240K, Zaxis 240LCK, Zaxis 250, Zaxis 250LC and Zaxis 250LCN.

This manuals will assist you in finding spare parts for your crawler excavator.
You can use a Windows, Mac, or Android device to view this manuals. You only need to have a PDF reader installed.

Covered Models:
   Zaxis 230
   Zaxis 230LC
   Zaxis 240H
   Zaxis 240LCH
   Zaxis 240K
   Zaxis 240LCK
   Zaxis 250
   Zaxis 250LC
   Zaxis 250LCN

The manual comprises two Parts Catalogs

1. Parts Catalog: Equipment Components (P1HD-E1-5)
Format: PDF, 212 pages
Language: English, Japan
Table of Contents:
   PUMP
      PUMP DEVICE
      PUMP ; UNIT
      REGULATOR (R)
      REGULATOR (L)
      PUMP ; GEAR
   MOTOR ; OIL
      MOTOR ; OIL (SWING)
      MOTOR ; OIL (TRAVEL)
      VALVE ; BRAKE
      VALVE ; RELIEF
      MOTOR ; OIL (TRAVEL)
      VALVE ; BRAKE
   VALVE
      VALVE ; CONTROL (1/5)
      VALVE ; CONTROL (2/5)
      VALVE ; CONTROL (3/5)
      VALVE ; CONTROL (4/5)
      VALVE ; CONTROL (5/5)
      VALVE ; CONTROL
      BODY ASS'Y
      VALVE ; RELIEF
      VALVE ; PILOT (FRONT, SWING)
      VALVE ; PILOT (TRAVEL)
      VALVE ; PILOT
      VALVE ; SOLENOID
      VALVE ; SLOW-RETURN
      VALVE ; SHUTTLE (1/5)
      VALVE ; SHUTTLE (2/5)
      VALVE ; SHUTTLE (3/5)
      VALVE ; SHUTTLE (4/5)
      VALVE ; SHUTTLE (5/5)
      VALVE ; SHUTTLE (1/5)
      VALVE ; SHUTTLE (2/5)
      VALVE ; SHUTTLE (3/5)
      VALVE ; SHUTTLE (4/5)
      VALVE ; SHUTTLE (5/5)
      VALVE ; SHUTTLE (1/5)
      VALVE ; SHUTTLE (2/5)
      VALVE ; SHUTTLE (3/5)
      VALVE ; SHUTTLE (4/5)
      VALVE ; SHUTTLE (5/5)
      VALVE ; SHUTTLE
      VALVE ; LOCK
      VALVE ; SELECTOR
      FILTER ; OIL
      VALVE ; HOLDING (BOOM)
      VALVE ; HOLDING (ARM)
   CYLINDER
      CYL.; BOOM (R)
      CYL.; BOOM (L)
      CYL.; ARM (MONO BOOM)
      CYL.; ARM (2P-BOOM)
      CYL.; BUCKET
      CYL.
      VALVE ; HOLDING (PISITIONING) (2P-BOOM)
   PARTS INDEX
      PARTS INDEX

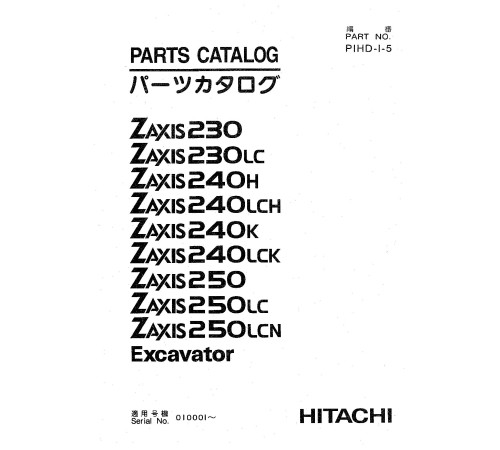

2. Parts Catalog (P1HD-1-5)
Format: PDF, 682 pages
Language: English, Japan
Table of Contents:
   UPPERSTRUCTURE
   UNDERCARRIAGE
   FRONT-END ATTACHMENTS (MONO BOOM)
   FRONT-END ATTACHMENTS (2P-BOOM)
   BREAKER and CRUSHER PARTS
   ASSIST PIPING
   TRAVEL HEAT PARTS
   ETC.
   TOOLS
   NAME-PLATE
   PARTS INDEX
