Hitachi Zaxis 210-5B, Zaxis 210LC-5B, Zaxis 210LCN-5B and Zaxis 240N-5B Crawler Excavator set of Service Manuals

All-Inclusive Factory Service Technical manual for Hitachi Crawler Excavators Models Zaxis 210-5B, Zaxis 210LC-5B, Zaxis 210LCN-5B and Zaxis 240N-5B.

This manuals will assist you in diagnosing, repairing, troubleshooting, and operating for your crawler excavator.
You can use a Windows, Mac, or Android device to view this manuals. You only need to have a PDF reader installed.

Covered Models:
   Zaxis 210-5B
   Zaxis 210LC-5B
   Zaxis 210LCN-5B
   Zaxis 240N-5B

The manual comprises 6 documents, including two Workshop Manuals, the Troubleshooting Manual, Operational Principle Manual, Operators Manual, and Wiring Diagram

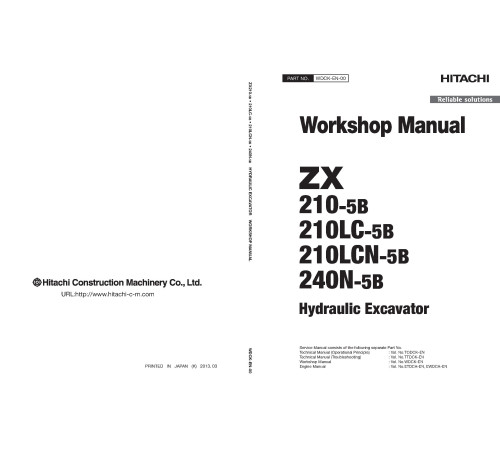

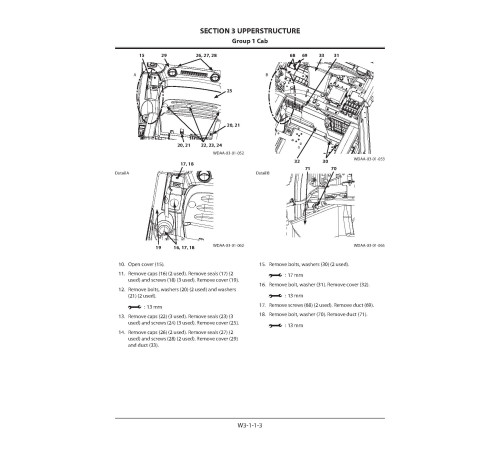

1. Workshop Manual (WDCK-EN-00)
Format: PDF, 571 pages
Language: English
Table of Contents:
   GENERAL INFORMATIOM
      Precautions for Disassembling and Assembling
      Tightening
      Painting
      Bleeding Air
      Pressure Release Procedure
      Preparation
   MAINTENANCE STANDARD
      Upperstructure
      Undercarriage
      Front Attachment
   UPPERSTRUCTURE
      Cab
      Counterweight

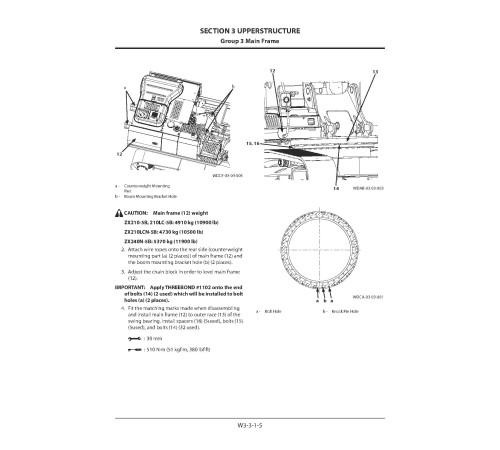

      Main Frame

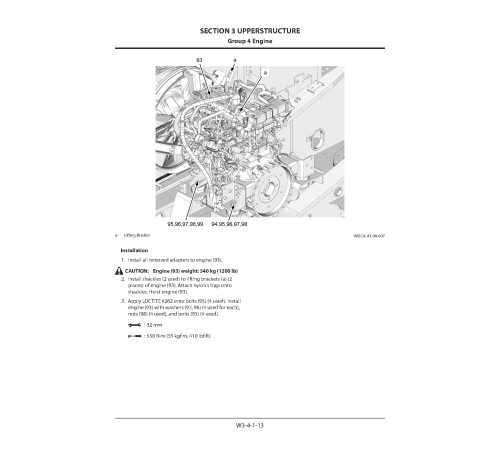

      Engine
      Radiator Assembly
      Hydraulic Oil Tank
      Fuel Tank
      Pump Device
      Control Valve
      Swing Device
      Pilot Valve
      Solenoid Valve
      Signal Control Valve
      Muffler Filter
   UNDERCARRIAGE
      Swing Bearing
      Travel Device
      Center Joint
      Track Adjuster
      Upper and Lower Rollers
      Track
   FRONT ATTACHMENT
      Front Attachment
      Cylinder
      Hose Rupture Value

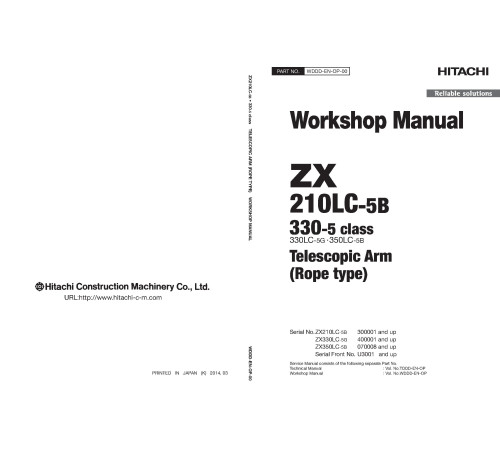

2. Workshop Manual (WDDD-EN-OP-00_(1))
Format: PDF, 164 pages
Language: English
Table of Contents:
   SPECIAL ATTACHMENT
   Rope Operated Type Telescopic Clamshell
      Remove and Install Rope Operated Type Telescopic Clamshell

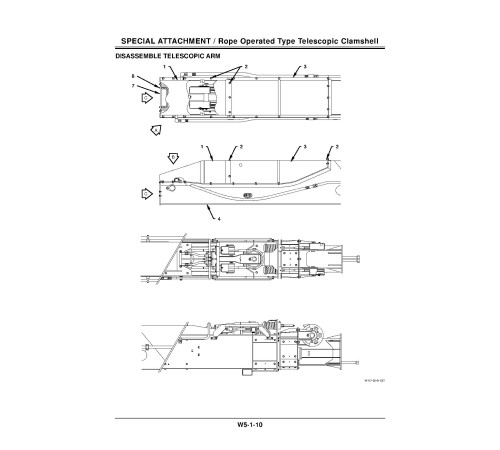

      Disassemble Telescopic Arm
      Assemble Telescopic Arm

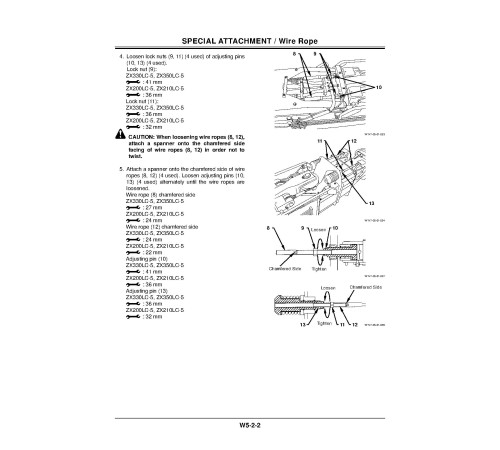

   Wire Rope
      Replacement of Hoisting Rope
      Replacement of Press-In Rope
      Replacement of Equalizer Rope

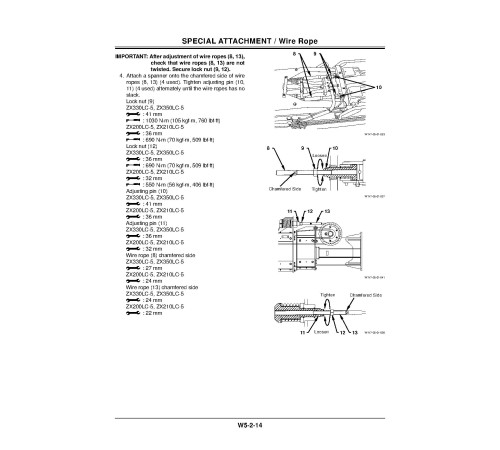

      Tension Adjustment of Wire Rope
   Hose
      Replacement of Hose
   Slide Plate
      Remove and Install Slide Plate
   Cylinder
      Disassembly of Extend / Retract Cylinder (ZX330LC-5, ZX350LC-5)
      Assembly of Extend / Retract Cylinder (ZX330LC-5, ZX350LC-5)
      Disassembly of Extend / Retract Cylinder(ZX200LC-5, ZX210LC-5)
      Assembly of Extend / Retract Cylinder (ZX200LC-5, ZX210LC-5)
   Others
      Remove and Install Regenerative Valve Block
      Structure of Regenerative Valve Block
      Adjustment of Alarm Device
   SERVICE MANUAL REVISION REQUEST FORM

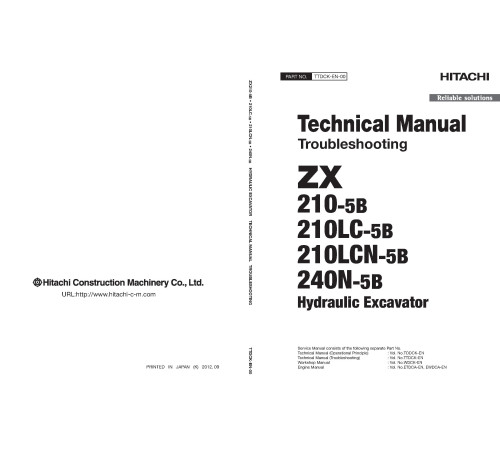

3. Troubleshooting Manual (TTDCK-EN-00(20140328))
Format: PDF, 508 pages
Language: English
Table of Contents:
   OPERATIONAL PERFORMANCE TEST
      Introduction
      Standard
      Engine Test
      Machine Performance Test
      Component Test
      Adjustment
   TROUBLESHOOTING
      Diagnosing Procedure
      Monitor
      e-Service

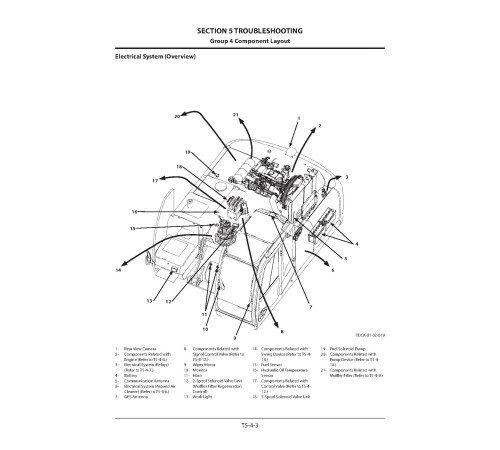

      Component Layout
      Troubleshooting A
      Troubleshooting B

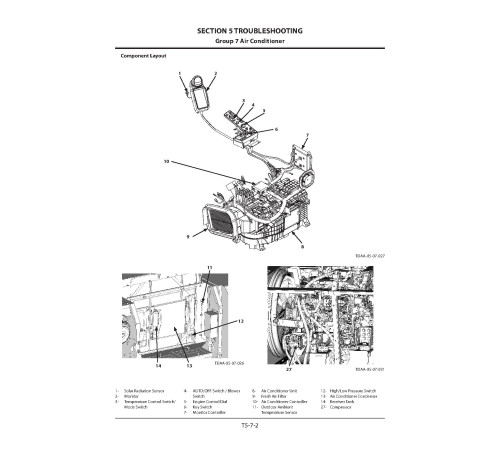

      Air Conditioner

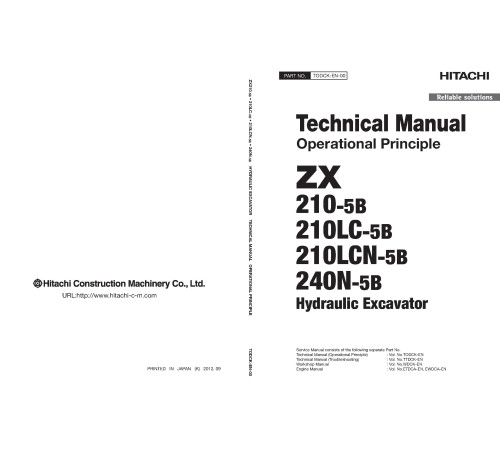

4. Operational Principle Manual (TODCK-EN-00)
Format: PDF, 442 pages
Language: English
Table of Contents:
   GENERAL
      Specifications

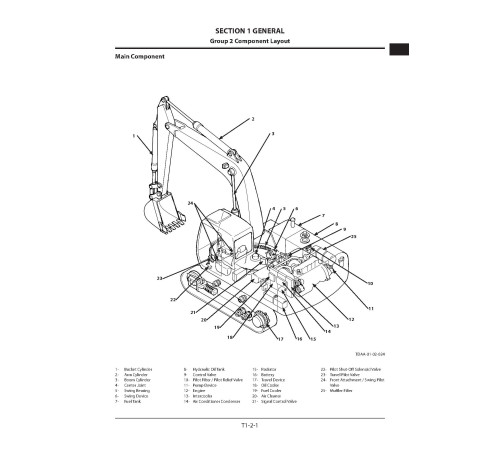

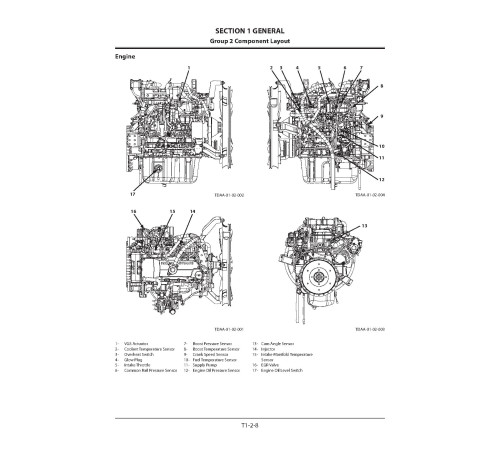

      Component Layout
      Component Specifications
   SYSTEM
      Controller
      Control System
      ECM System
      Hydraulic System
      Electrical System
   COMPONENT OPERATION
      Pump Device
      Swing Device
      Control Valve
      Pilot Valve
      Travel Device

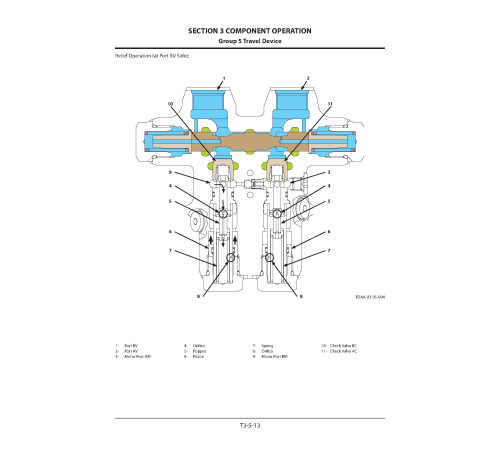

      Signal Control Valve
      Others (Upperstructure)
      Others (Undercarriage)

5. Operators Manual (ENMDCA-EN2-1)
Format: PDF, 508 pages
Language: English
Table of Contents:
   MACHINE NUMBERS
   SAFETY
   SAFETY SIGNS
   COMPONENTS NAME
   GETTING ON/OFF THE MACHINE
   OPERATOR’S STATION
   BREAK-IN
   OPERATING THE ENGINE
   DRIVING THE MACHINE
   OPERATING THE MACHINE
   TRANSPORTING
   MAINTENANCE
   HYDRAULIC CIRCUIT AND ELECTRICAL CIRCUIT
   MAINTENANCE UNDER SPECIAL ENVIRONMENTAL CONDITIONS
   STORAGE
   TROUBLESHOOTING
   SPECIFICATIONS
   INDEX

6. Wiring Diagram (TTDCK-EN-00_curcuit)
Format: PDF, 17 pages
Language: English
Table of Contents:
   ELECTRICAL CIRCUIT DIAGRAM
   CONNECTORS
   CAB HARNESS
   ENGINE HARNESS
   ENGINE HARNESS
   PUMP HARNESS
   PUMP HARNESS
   MONITOR HARNESS
   MUFFLER FILTER SWITCH HARNESS
   GSM (MOBILE COMMUNICATION TERMINAL) HARNESS
   SATELLITE COMMUNICATION HARNESS
   KEY SWITCH HARNESS
   PILOT SHUT-OFF SOLENOID VALVE HARNESS
   REARVIEW CAMERA HARNESS
   HYDRAULIC CIRCUIT DIAGRAM (MONOBLOCK BOOM) (STANDARD)
   HYDRAULIC CIRCUIT DIAGRAM(2-PIECE BOOM)(STANDARD)
   HYDRAULIC CIRCUIT DIAGRAM (OPTIONAL)
