Hitachi Zaxis 330-5A, Zaxis 330LC-5A, Zaxis 350H-5A, Zaxis 350LCH-5A, Zaxis 350K-5A and Zaxis 350LCK-5A Crawler Excavator set of Service Manuals

All-Inclusive Factory Service Technical manual for Hitachi Crawler Excavators Models Zaxis 330-5A, Zaxis 330LC-5A, Zaxis 350H-5A, Zaxis 350LCH-5A, Zaxis 350K-5A and Zaxis 350LCK-5A.

This manuals will assist you in diagnosing, repairing, troubleshooting, and operating for your crawler excavator.
You can use a Windows, Mac, or Android device to view this manuals. You only need to have a PDF reader installed.

Covered Models:
   Zaxis 330-5A
   Zaxis 330LC-5A
   Zaxis 350H-5A
   Zaxis 350LCH-5A
   Zaxis 350K-5A
   Zaxis 350LCK-5A

The manual comprises 4 documents, including the Workshop Manual, Troubleshooting Manual, Operators Manual, and Wiring Diagram

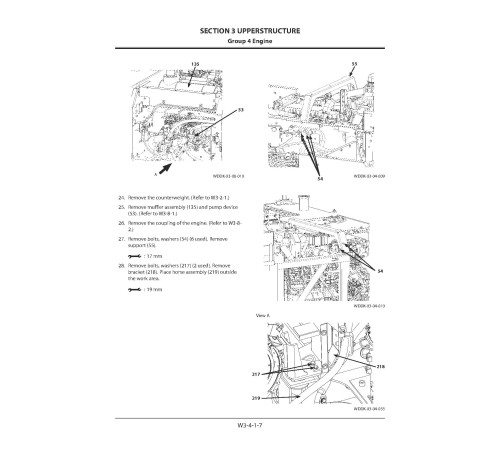

1. Workshop Manual (WDDK90-EN-00)
Format: PDF, 543 pages
Language: English
Table of Contents:
   GENERAL
      Precautions for Disassembling and Assembling
      Tightening
      Painting
      Bleeding Air
      Pressure Release Procedure
      Preparation
   MAINTENANCE STANDARD
      Upperstructure
      Undercarriage
      Front Attachment
   UPPERSTRUCTURE
      Cab
      Counterweight
      Main Frame
      Engine
      Pump Device
      Control Valve
      Swing Device
      Pilot Valve
      Solenoid Valve
      Signal Control Valve
   UNDERCARRIAGE
      Swing Bearing
      Travel Device
      Center Joint
      Track Adjuster
      Upper and Lower Rollers
      Track
   FRONT ATTACHMENT
      Front Attachment
      Cylinder

2. Troubleshooting Manual (TTDDK90-EN-00)
Format: PDF, 470 pages
Language: English
Table of Contents:
   OPERATIONAL PERFORMANCE TEST
      Introduction
      Standard
      Engine Test
      Machine Performance Test
      Component Test
   TROUBLESHOOTING
      Diagnosing Procedure
      Monitor
      e-Service
      Component Layout
      Troubleshooting A
      Troubleshooting B
      Air Conditioner

3. Operators Manual (ENMDAKLA22)
Format: PDF, 440 pages
Language: English
Table of Contents:
   MACHINE NUMBERS
   SAFETY
   SAFETY SIGNS
   COMPONENTS NAME
   GETTING ON/OFF THE MACHINE
   OPERATOR’S STATION
   BREAK-IN
   OPERATING THE ENGINE
   DRIVING THE MACHINE
   OPERATING THE MACHINE
   TRANSPORTING
   MAINTENANCE
   MAINTENANCE UNDER SPECIAL ENVIRONMENTAL CONDITIONS
   STORAGE
   TROUBLESHOOTING
   SPECIFICATIONS
   OPTIONAL ATTACHMENTS AND DEVICES
   INDEX

4. Wiring Diagram (TTDDK90-EN-00_Circuit(20160315))
Format: PDF, 14 pages
Language: English
Table of Contents:
   ELECTRICAL CIRCUIT DIAGRAM
   CONNECTORS
   CAB HARNESS
   ENGINE HARNESS
   PUMP HARNESS
   MONITOR HARNESS
   GSM (MOBILE COMMUNICATION TERMINAL) HARNESS
   SATELLITE COMMUNICATION HARNESS
   KEY SWITCH HARNESS
   PILOT SHUT-OFF SOLENOID VALVE HARNESS
   REARVIEW CAMERA HARNESS
   HYDRAULIC CIRCUIT DIAGRAM (STANDARD)
   HYDRAULIC CIRCUIT DIAGRAM (OPTIONAL)
   HYDRAULIC CIRCUIT DIAGRAM (AFL)
