Hitachi Zaxis 55U-5A Compact Excavator set of Parts Catalogs

Illustrated factory set of Parts Catalogs for Hitachi Compact Excavators Models Zaxis 55U-5A.

This manuals will assist you in finding spare parts for your compact excavator.
You can use a Windows, Mac, or Android device to view this manuals. You only need to have a PDF reader installed.

Covered Models:
   Zaxis 55U-5A

The manual comprises two Parts Catalogs

1. Parts Catalog: Equipment Components (PAEB50-E1-1)
Format: PDF, 161 pages
Language: English, Japan
Table of Contents:
   MEMORANDUM
   FOREWORD
      PUMP
         PUMP;PISTON
      MOTOR
         T.MISSION
         MOTOR;OIL (SWING)
         MOTOR;OIL (1/4)
         MOTOR;OIL (2/4)
         MOTOR;OIL (3/4)
         MOTOR;OIL (4/4)
      VALVE
         VALVE;CONTROL
         SPOOL SECTION (UNLORD BLOCK)
         SPOOL SECTION (PIPING PORT BLOCK)
         SPOOL SECTION (SWING)
         SPOOL SECTION (BLADE
         SPOOL SECTION (TRAVEL)
         SPOOL SECTION (BOOM SWING)
         SPOOL SECTION (BOOM)
         SPOOL SECTION (ARM)
         SPOOL SECTION (BUCKET)
         SPOOL SECTION (AUX.)
         VALVE;CONTROL (WITH AUX. RELIEF VALVE)
         SPOOL SECTION (UNLORD BLOCK)
         SPOOL SECTION (PIPING PORT BLOCK)
         SPOOL SECTION (SWING)
         SPOOL SECTION (BLADE)
         SPOOL SECTION (TRAVEL)
         SPOOL SECTION (BOOM SWING)
         SPOOL SECTION (BOOM)
         SPOOL SECTION (ARM)
         SPOOL SECTION (BUCKET)
         SPOOL SECTION (AUX.)
         VALVE;CONTROL (AUX. 2 SECTION)
         SPOOL SECTION (UNLORD BLOCK)
         SPOOL SECTION (PIPING PORT BLOCK)
         SPOOL SECTION (SWING)
         SPOOL SECTION (BLADE)
         SPOOL SECTION (TRAVEL)
         SPOOL SECTION (BOOM SWING)
         SPOOL SECTION (BOOM)
         SPOOL SECTION (ARM)
         SPOOL SECTION (BUCKET)
         SPOOL SECTION (AUX.:2)
         SPOOL SECTION (AUX.)
         VALVE;PILOT (FRONT, SWING)
         VALVE;PILOT (TRAVEL)
         VALVE;PILOT (TRAVEL)(WITH SHUTTLE PORT)
         VALVE;PILOT (SWING, BLADE, AUX.)
         VALVE;SOLENOID (2 SPOOLS)
         VALVE;SOLENOID
         VALVE;SOLENOID (AFL:2 PORTS)
         VALVE;SOLENOID (AFL:4 PORTS)
         VALVE;CHECK
         VALVE;CHECK (ACCUMULATOR)
         VALVE
         VALVE;ROTARY (2WAY)
      JOINT;CENTER
         JOINT;CENTER
      CYLINDER
         CYL.;BOOM
         CYL.;ARM
         CYL.;BUCKET
         CYL.;BOOM (HOSE RUPTURE VALVE)
         CYL.;ARM (HOSE RUPTURE VALVE)
         CYL.;SWING
         CYL.;BLADE
   PARTS INDEX

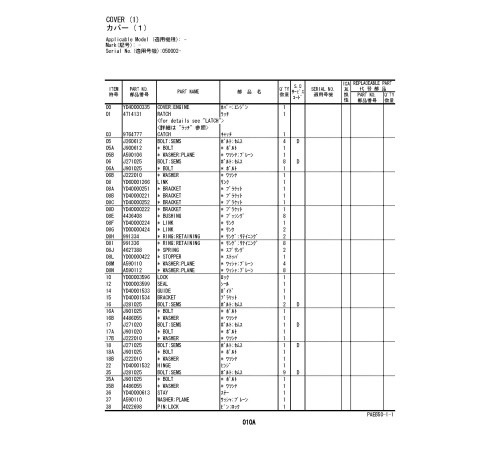

2. Parts Catalog (PAEB50-1-1)
Format: PDF, 381 pages
Language: English, Japan
Table of Contents:
   ILLUSTRATION CONTENTS
   FRAME,COVER
   ENGINE
   HYDRAULIC SYSTEM
   HYDRAULIC PIPING
   HYDRAULIC PIPING (MAIN)
   HYDRAULIC PIPING (PILOT)
   ELECTRIC SYSTEM
   CANOPY
   CAB
   FLOOR PARTS (CANOPY)
   FLOOR PARTS (CAB)
   AIR CONDITIONERHEATER
   UNDERCARRIAGE
   FRONT-END ATTACHMENTS
   EXTRA PIPING
   ETC.
   TOOLS
   NAME-PLATE
   PARTS INDEX
